GROUND TYPE I

Bracket Form-ground type

Technical Data

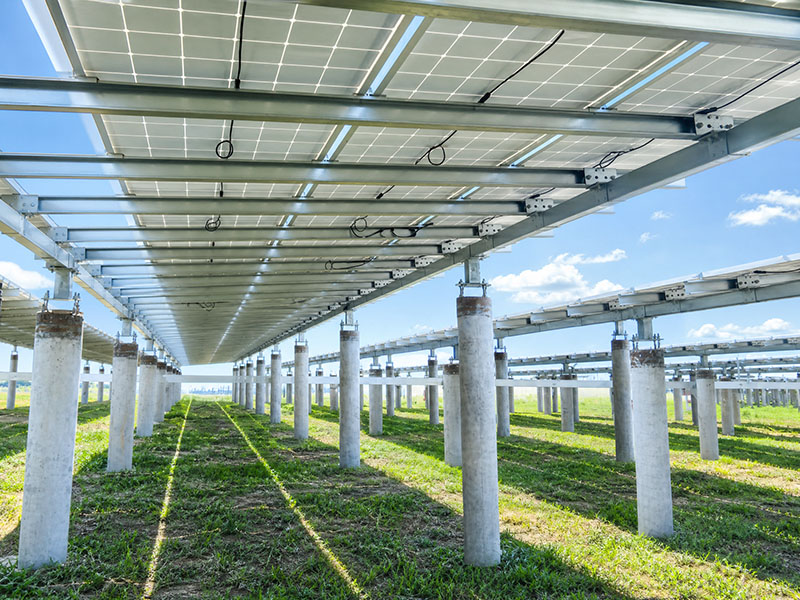

Place: Wetlands and fish farms
Fundamental: PC piles and spiral Piles
Tilt Angle: 0-15 Degree
Orientation: Horizontal and vertical Placement
Maximum Wind Load: 61.2 m/s

Characteristics

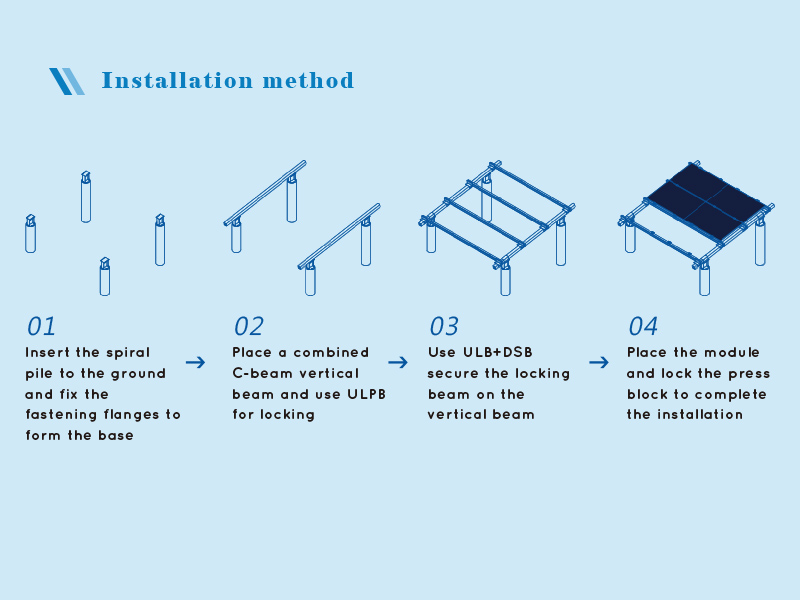

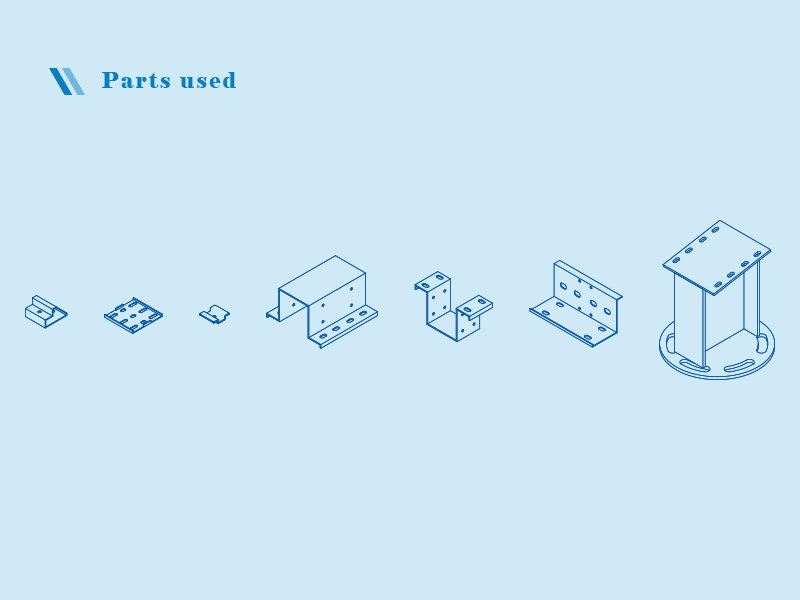

Ground I type uses cement foundation as the foundation setup. Appropriate for wetlands and fish farms. Utilizes an all locking piece design that connects to the structure at the bottom. The top part and the module’s bottom three axis adjustable locking design can significantly reduce error from measuring and piling construction. The standard locking method is a total of eight top and bottom locking points.

Best for

Wetlands and fish farms
